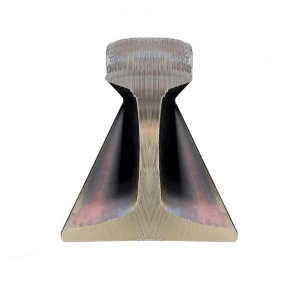

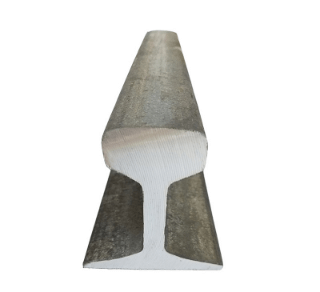

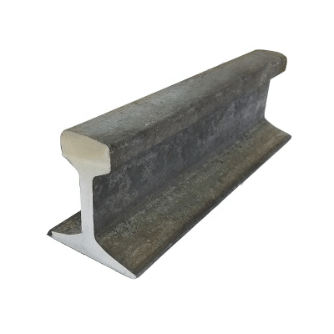

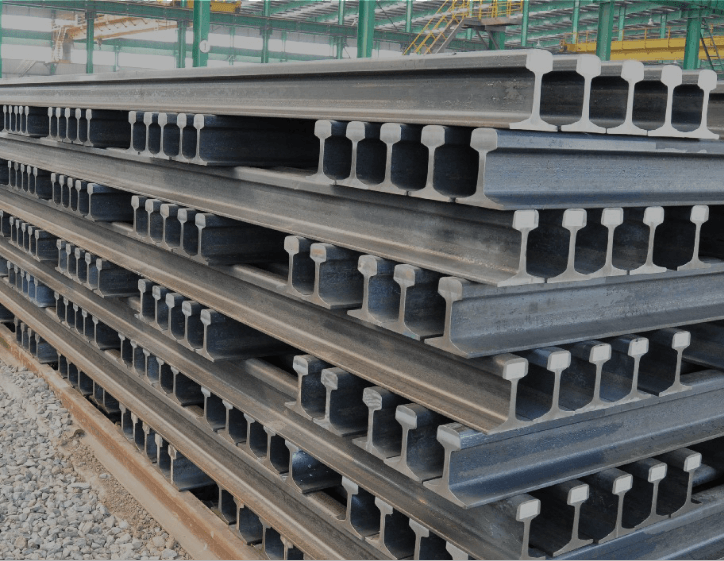

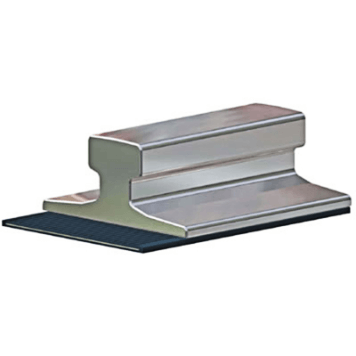

crane rail

rails are subject to very high stresses and are made of very high quality steel. We supply and export rail with high quality and competitive prices.

As a professional rail products manufacturer in China, we can provide high-quality steel rail with various of sizes as listed above to meet your special requirements. We have more than 20 years experience in steel rail and can provide light rail, heavy rail, crane rail and rail accessories. if you have problems about rail, you contact us. If you need rail, please choose us.

Supply Ability: 5000 Tons/Month Delivery: within 30 working days

specification

our crane rails are available in diverse strengths and sizes

DIN Standard Rail （DIN5901:1955-11）

Model

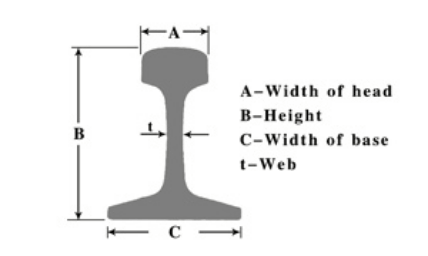

Dimension
A(mm)
B(mm)
C(mm)
T(mm)
Weight
(KG/M)
Material
Length
(M/PC)
S14
90
70
38
9
14
55Q
6-12
S18
93
82
43
10
18.3
55Q
6-12
S20
100
82
44
10
19.8
RO700
6-12
S30
108
108
60.3
12.3
30.3
RO700
6-12

DIN Standard Rail （DIN536-1-1991）

Model
Dimension
A(mm)
B(mm)
C(mm)
T(mm)
Weight
(KG/M)
Material
Length
(M/PC)
A45
90
70
38
9
14
700/900A/
1100
10-12
A55
93
82
43
10
18.3
700/900A/
1100
10-12
A65
100
82
44
10
19.8
700/900A/
1100
10-12
A75
108
108
60.3
12.3
30.3
700/900A/
1100
10-12
A100
108
108
60.3
12.3
30.3
700/900A/
1100
10-12
A120
108
108
60.3
12.3
30.3
700/900A/
1100
10-12
A150
108
108
60.3
12.3
30.3
700/900A/
1100
10-12

UIC Standard Steel Rail （UIC860-O）

Model
Dimension
A(mm)
B(mm)
C(mm)
T(mm)
Weight
(KG/M)
Material
Length
(M/PC)
UIC 50
70
152
125
15
50.46
900A/1100
12-25
UIC 54
70
159
140
16
54.43
900A/1100
12-25
UIC 60
74.3
172
150
16.5
60.21
900A/1100
12-25

JIS E Standard Steel Rail （JIS E1103-93/ JISE1101-93）

Model
Dimension
A(mm)
B(mm)
C(mm)
T(mm)
Weight
(KG/M)
Material
Length
(M/PC)
JIS 15KG
42.86
79.37
79.37
8.33
15.2
55Q
9-10
JIS 22KG
50.8
93.66
93.66
10.72
22.3
55Q
9-10
JIS 30A
60.33
107.95
107.95
12.3
30.1
55Q
9-10
JIS 37A
52.71
122.24
122.24
13.49
37.2
U71Mn
10-25
JIS 50N
65
153
127
15
50.4
U71Mn
10-25
CR 73
100
135
140
32
73.3
U71Mn
10-12
CR 100
120
150
155
39
100.2
U71Mn
10-12

American Standard Rail (ASTM A1/AREMA)

Model
Dimension
A(mm)
B(mm)
C(mm)
T(mm)
Weight
(KG/M)
Material
Length
(M/PC)
ASCE 25
38.1
69.85
69.85
7.54
12.4
700
6-12
ASCE 30
42.86
79.38
79.38
8.33
14.88
700
6-12
ASCE 40
47.62
88.9
88.9
9.92
19.84
700
6-12
ASCE 50
54
98.4
98.4
11.11
24.855
700
6-12
ASCE 60
60.32
107.95
107.95
12.3
29.76
700
6-12
ASCE 75
62.71
122.24
122.24
13.49
37.2
900A/1100
12-25
ASCE 85
65.09
131.76
131.76
14.29
42.17
900A/1100
12-25
90RA
142.88
130.18
131.76
14.29
44.65
900A/1100
12-25
115RE
69.06
168.28
139.7
15.88
56.9
900A/1100
12-25
136RE
74.61
185.74
152.4
17.466
67.41
900A/1100
12-25
175LBs
109.86
152.4
152.4
38.1
86.8
900A/1100
12-25

BS11:1985 Standard Rail (BS11:1985)

Model
Dimension
A(mm)
B(mm)
C(mm)
T(mm)
Weight
(KG/M)
Material
Length
(M/PC)
BS 80 A
63.5
133.35
117.47
13.1
39.761
900A
8-25
BS 80 R
63.5
133.35
127
13.49
39.761
900A
8-25
BS 100 A
69.85
152.4
133.35
15.08
50.182
900A
8-25

EN Standard Steel Rail (EN 13674-1-2003)

Model
Dimension
A(mm)
B(mm)
C(mm)
T(mm)
Weight
(KG/M)
Material
Length
(M/PC)
49 E1
67
149
125
14
49.39
R260/R350
HT
12-25
50 E1
65
153
134
15.5
50.37
R260/R350
HT
12-25
50 E2
72
151
140
15
49.97
R260/R350
HT
12-25
54 E1
70
159
140
16
54.77
R260/R350
HT
12-25
60 E1
72
172
150
16.5
60.21
R260/R350
HT
12-25

In addition to the rail models shown above, other models can be provided like: AUS、BS EN 14811、ISCOR etc.

our crane rails are available in diverse strengths and sizes. We have the inventory, resources, and experience to meet your needs.

accessory products

crane rail fixing system

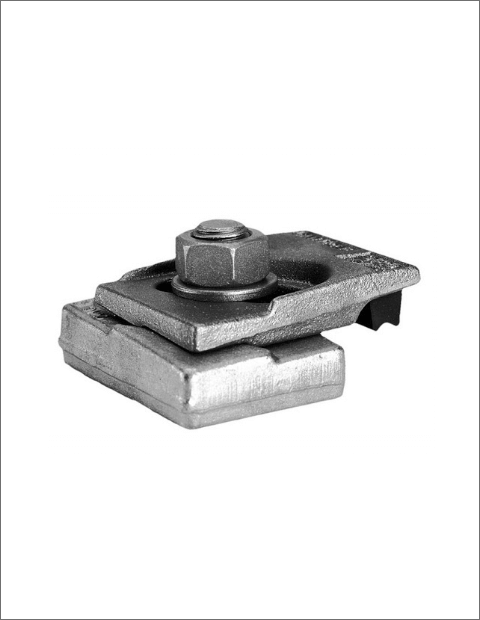

Rail Clamp

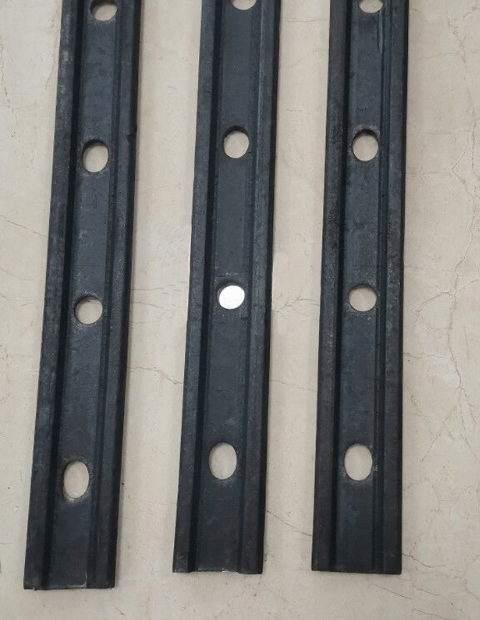

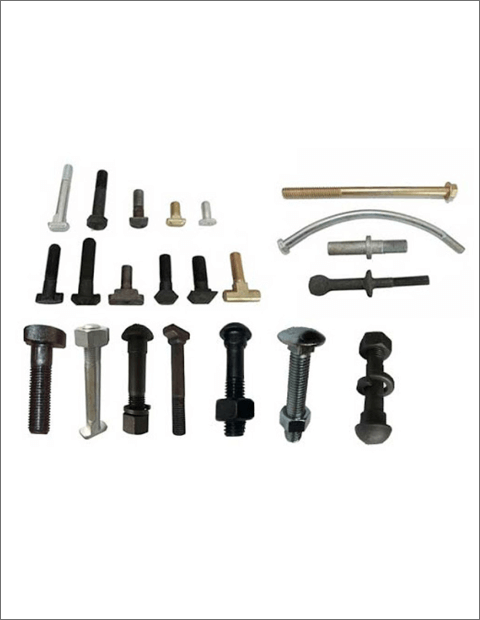

Rail Fish Bolt
Rail Bolt

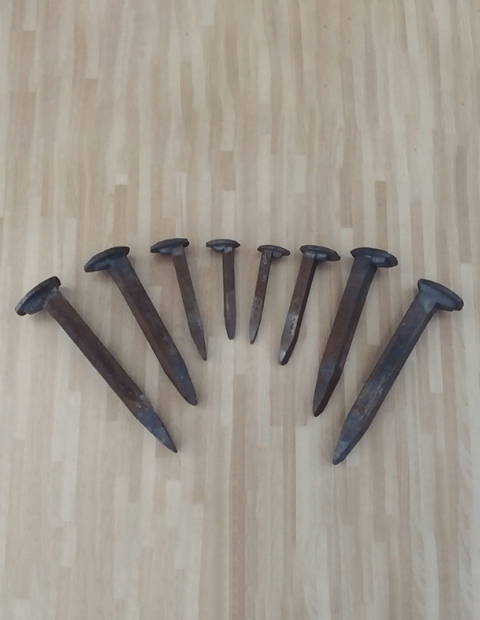

Rail Spike

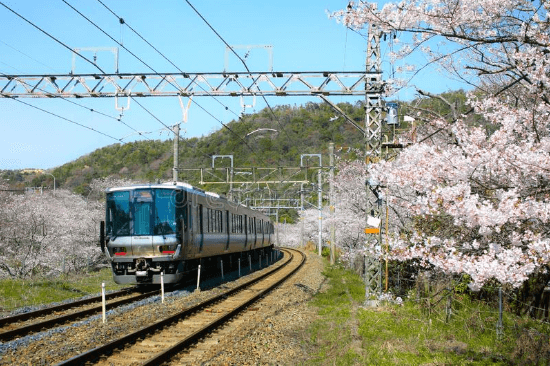

the rail line
mine workings

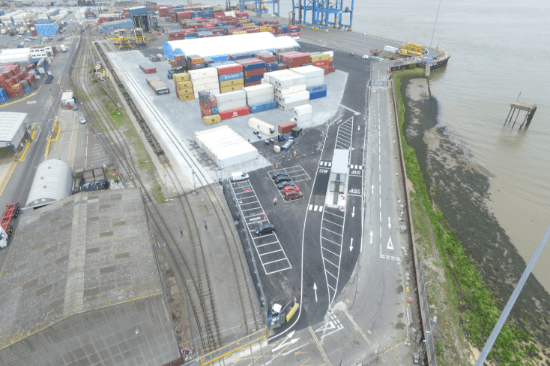

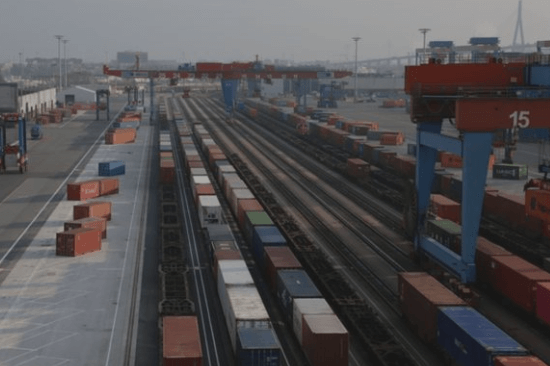

dock port

Henan Zongxiang Heavy Industry Import & Export Co., Ltd, established by experienced crew on the rail & track field, is a professional & reliable supplier that provides all kinds of rail & track accessories.

As an international trade subsidiary of Zhongxiang Steel Group Inc., was founded in 1997. We have more than two decades experience on this field, covering an area of 33,000 square meters, with about 300 employees, 4 production lines, 2 R & D department, and 5 quality control staff. With advanced technology, powerful processing capacity and excellent service, our products have been well recognized by our customers from domestic & overseas market.

Our products mainly used by railroads, mining companies, heavy industries, overhead crane, railroad and tunneling industry, transit authorities, and operators of port facilities.We have the inventory, resources, and experience to meet your needs.
