Rail clip is also called welded type rail clips, welding rail fixing device, rail clamp and welding tie plate, and its function is to press and fix rails.
Adjustable crane rail clip is designed to fix heavy rails in the most arduous applications. It can withstand a horizontal force from the rail of 55kN - 165KN(5.6 - 16.8 tonnes). Its low profile allows it to be used with cranes that are fitted with guide rollers.
Rail clip is usually welded on I-beam and sometimes used on steel plate embedded in concrete.
Applications: Used for QU70 rail, QU80 rail, a55 rail, a65 rail, a75 rail, a100 rail, s30 rail, s33 rail, s41 rail, s49 rail, jis37 rail, asce80 rail, asce85 rail, uic54 rail, etc. Other rail sizes according to your requirements.9116/08/37 crane rail clips. Adjustable crane rail clip is designed to fix heavy rails in the most arduous applications. It can withstand a horizontal force from the rail of 55kN(5.6 tonnes).Its low profile allows it to be used with cranes that are fitted with guide rollers.
Max side load using grade 8.8 bolt 55kN
8mm horizontal rail adjustment

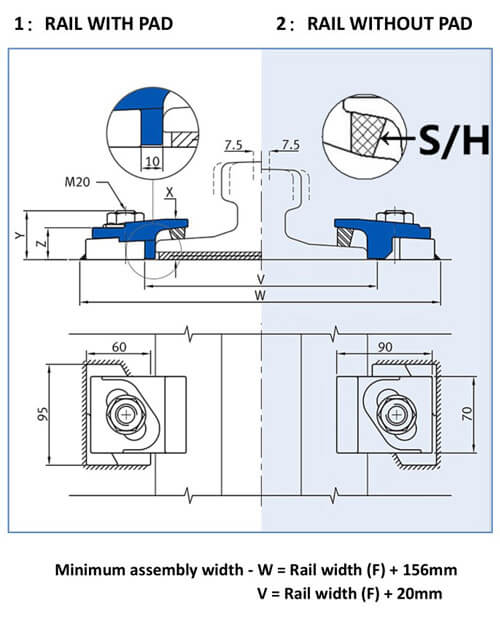

9120/15/38 crane rail clips. Adjustable crane rail clip is designed to fix heavy rails in the most arduous applications. It can withstand a horizontal force from the rail of 120kN(12.2 tonnes). Its low profile allows it to be used with cranes that are fitted with guide rollers.
Max side load 120kN
15mm horizontal rail adjustment
9216/08/40 crane rail clips. Adjustable crane rail clip is designed to fix heavy rails in the most arduous applications. It can withstand a horizontal force from the rail of 165kN(16.8 tonnes). Its low profile allows it to be used with cranes that are fitted with guide rollers.
Max side load 165KN
8mm Horizontal rail adjustment
7116/20/38 Adjustable crane rail clip is designed to fix heavy rails in the most arduous applications. It can withstand a horizontal force from the rail of 120kN(12.2 tonnes).Its low profile allows it to be used with cranes that are fitted with guide rollers.
Max side load 120KN
20mm horizontal rail adjustment
7120/21/42 Adjustable crane rail clip is designed to fix light rails in the most arduous applications. It can withstand a horizontal force from the rail of 185kN(18.5tonnes).Its low profile allows it to be used with cranes that are fitted with guide rollers.
Max side load 185KN
21mm horizontal rail adjustment
7220/21/43 Adjustable crane rail clip is designed to fix heavy rails in the most arduous applications. It can withstand a horizontal force from the rail of 300kN(30.6 tonnes).Its low profile allows it to be used with cranes that are fitted with guide rollers.
Max side load 300KN
21mm horizontal rail adjustment
Rail clip is a kind of fastener suitable for railway system, which is used to fix rails and plays an important role in laying railways.
We supply all kinds of rail clips. We have the inventory, resources, and experience to meet your needs.
WJK RAIL CLIP
AWS1615 CRANE RAIL CLIPS
CGWK RAIL CLIP

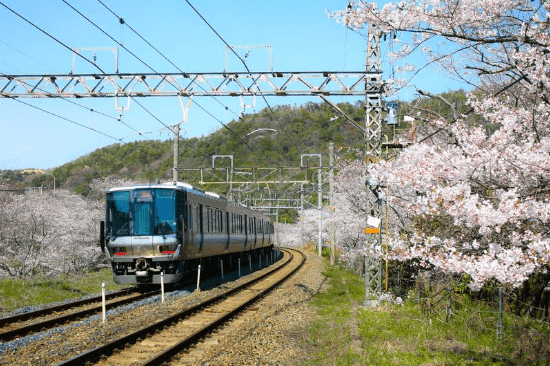

the rail line

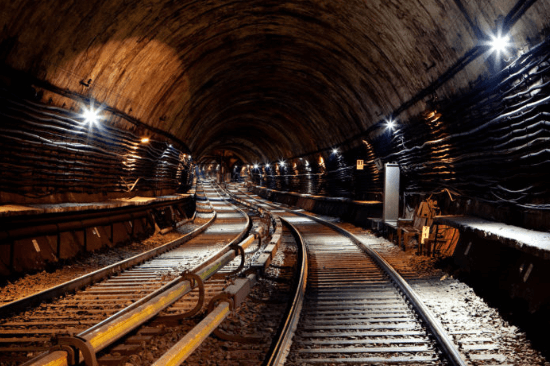

mine workings

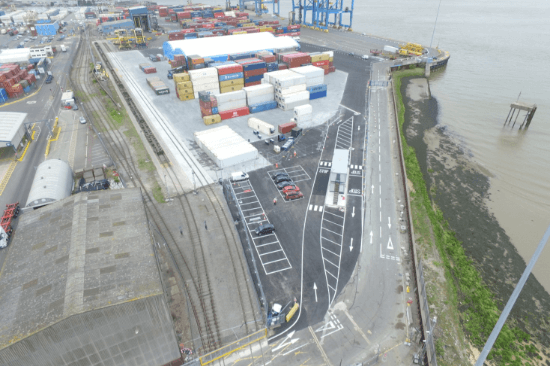

dock port
Henan Zongxiang Heavy Industry Import & Export Co., Ltd, established by experienced crew on the rail & track field, is a professional & reliable supplier that provides all kinds of rail & track accessories.
As an international trade subsidiary of Zhongxiang Steel Group Inc., was founded in 1997. We have more than two decades experience on this field, covering an area of 33,000 square meters, with about 300 employees, 4 production lines, 2 R & D department, and 5 quality control staff. With advanced technology, powerful processing capacity and excellent service, our products have been well recognized by our customers from domestic & overseas market.
Our products mainly used by railroads, mining companies, heavy industries, overhead crane, railroad and tunneling industry, transit authorities, and operators of port facilities.We have the inventory, resources, and experience to meet your needs.
