Choose the right rail clamps for rail!

Edit:Zongxiang Heavy Industry--Jolin Date:2023-02-28 16:52:54

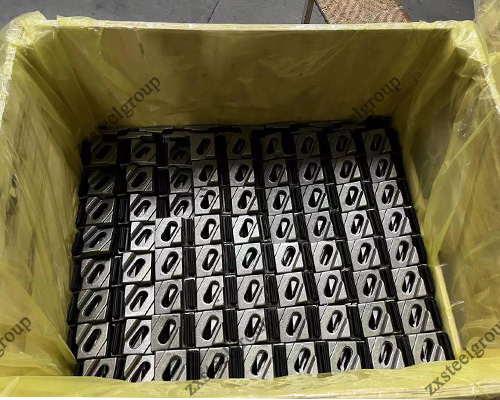

Rail clamps, also called rail clips. It is a kind of rail fasteners that can be used to fix the steel rail track. We can supply various sizes of steel rail clamps, including clip 3116,3120,3124,3222,3224,7116,7120,7216,7220,7224,9116,9120,9220, etc. So, what is the difference between them?

The clamps can be divided into single and double holes. In the four number of clamps, the second one represents the hole number. The 2 is double holes while the 1 is single holes. For example, the 7116 is a single hole clamp while the 7216 is a double hole clamp.

Different clamps can be used for different sizes steel rail.

3116 crane rail clamp is designed to fix light rails in the most arduous applications. It can withstand a horizontal force from the rail of 38kn, or 3.9 tons. Its low profile allows it to be used with cranes that are fitted with guide rollers. The two main parts are located together on tightening the nut. A special vulcanized rubber block applies a controlled force to the rail. The rail with pad plan is 14mm. The rail without pad plan is 21mm. 3116 rail clamp can be used for many types of steel rail, including p30, p38, p43, jis37, ASCE60,ASCE80,ASCE85,S14,S20,S30,A45,A55,A65,etc.

3220 rail clamps can withstand a horizontal force from the rail of 150kn, or 15.2 tonnes. 3220 clips can be used for qu70,qu80,p50,uic54,uic60,56E1,A65,A75,A100,ISCR60,ISCR80,etc.

While the 7224 rail clamps have the max side load 560kn. It is designed to fix heavy rails in the most arduous applications. The applicable rails include qu100, qu120,A120,A150,ISCR 100, ISCR120, ISCR140,CR73,etc.

If you need steel rail clamps and have no idea to choose which one, welcome to inquiry us.
