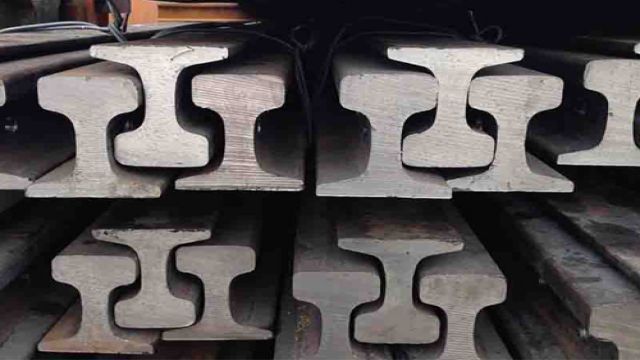

QU70 Crane Rail
QU70 Crane Rail
Type: qu70 rail
Material: U71Mn
Weight: 52.8KG/M
Length: 12m
Standard: YB/T5055-93
Product Description:
Steel rail, also called rail track, steel track, is the main component of railway track. Its function is to guide the wheels of the locomotive, bear the great pressure of the wheel, and keep the stability of railway transportation. The rail must provide continuous, smooth and minimum rolling surfaces for the wheels. In electrified railway or automatic block section, rail can also be used as an orbital circuit.
QU70 Rail Parameters
Rail Type Weight(Kg/m) Material Length(m)
QU70 52.8 U71Mn 12
Head Width(mm) Bottom Width(mm) Rail Height(mm) Web Thickness
70 120 120 28

Other Sizes of Crane Rail
Size Head Width(mm) Bottom Width(mm) Rail Height(mm) Web Thickness(mm) Weight(Kg/m) Material Length(m)
QU80 80 130 130 32 63.69 U71Mn 12
QU100 100 150 150 38 88.96 U71Mn 12
QU120 120 170 170 44 118.1 U71Mn 12


We supply and export QU70 Rail with high quality and competitive prices. Qu70 rail is one of crane rails.If you need any qu70 rail,please contact us.
Application: Big project, Gantry crane, Wharf, etc.
Safe load: 50 tons
