QU120 Crane Rail
QU120 Crane Rail
Type: QU120 rail
Material: U71Mn
Weight: 118.1KG/M
Length: 12m
Standard: YB/T5055-93
Product Descriptions:
Steel rail, also called rail track, steel track, is the main component of railway track. Its function is to guide the wheels of the locomotive, bear the great pressure of the wheel, and keep the stability of railway transportation. The rail must provide continuous, smooth and minimum rolling surfaces for the wheels. In electrified railway or automatic block section, rail can also be used as an orbital circuit.
Specifications:
QU120 Rail Parameters
Rail Type Weight(Kg/m) Material Length(m)
QU120 118.1 U71Mn 12
Head Width(mm) Bottom Width(mm) Rail Height(mm) Web Thickness
120 170 170 44
Other Sizes of Crane Rail
Size Head Width(mm) Bottom Width(mm) Rail Height(mm) Web Thickness(mm) Weight(Kg/m) Material Length(m)
QU70 70 120 120 28 52.8 U71Mn 12
QU80 80 130 130 32 63.69 U71Mn 12
QU100 100 150 150 38 88.96 U71Mn 12

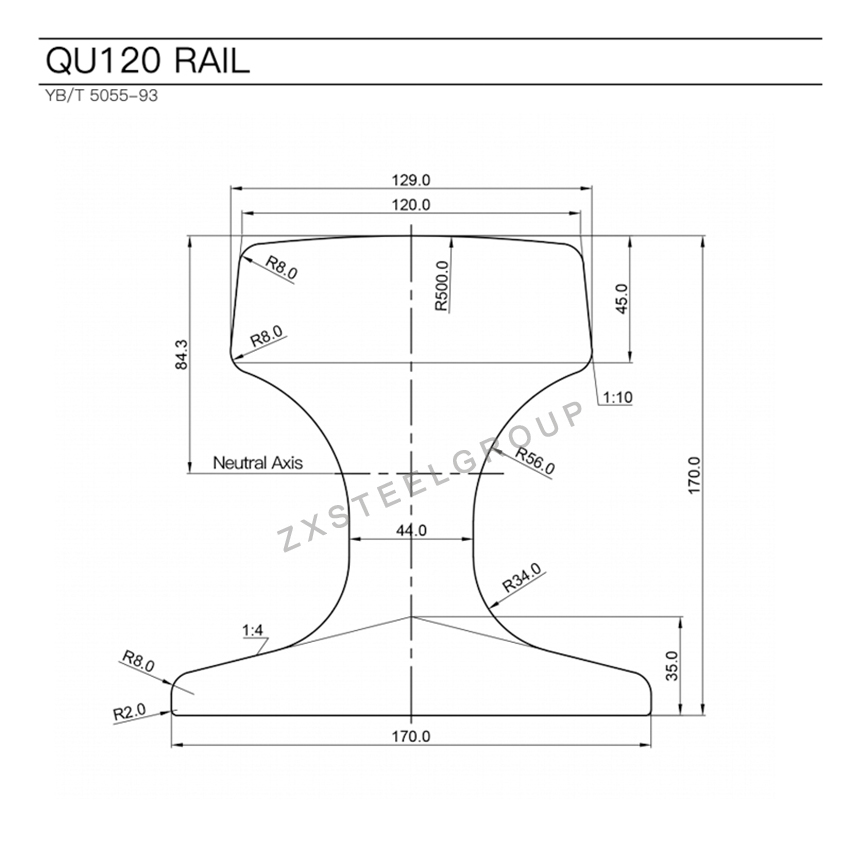

Drawing:

We supply and export QU120 Rail with high quality and competitive prices. Qu120 rail is one of crane rails.If you need any qu120 rail,please contact us.
Application:   Gantry crane, Big project, Wharf, etc.
Safe load: 100 tons
