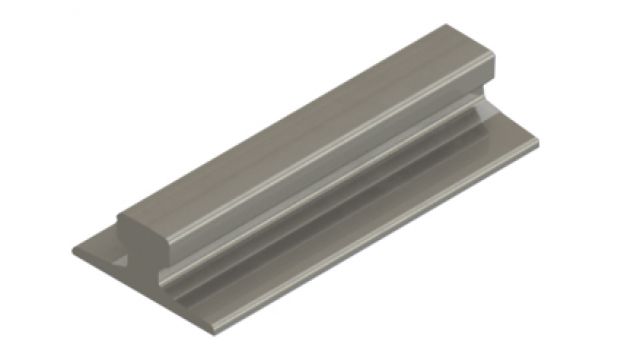

A120 Rail
A120 Rail
Type: A120 Rail
Material: 700/900A/1100
Weight: 100kg/m
Length: 10-12m
Standard: DIN536-1-1991
Product Descriptions:
Steel rail, also called rail track, steel track, is the main component of railway track. Its function is to guide the wheels of the locomotive, bear the great pressure of the wheel, and keep the stability of railway transportation. The rail must provide continuous, smooth and minimum rolling surfaces for the wheels. In electrified railway or automatic block section, rail can also be used as an orbital circuit.
A120 Rail Parameters
Rail Type Weight(Kg/m) Material Length(m)
A120 100 700/900A/1100  10-12
Head Width(mm) Bottom Width(mm) Rail Height(mm) Web Thickness
120 220 105 72

Other Sizes of Crane Rail
Size Head Width(mm) Bottom Width(mm) Rail Height(mm) Web Thickness(mm) Weight(Kg/m) Material Length(m)
A45 45 125 55 24 22.1 700/900A/1100  10-12
A55 55 150 65 31 31.8 700/900A/1100  10-12
A65 65 175 75 38 43.1 700/900A/1100  10-12
A75 75 200 85 45 56.2 700/900A/1100  10-12
A100 100 200 95 60 74.3 700/900A/1100  10-12
A150 150 220 150 80 150.3 700/900A/1100  10-12

We supply and export a120 rail with high quality and competitive prices. A120 rail is one of heavy rail.A120 rail consists of  rail head, rail waist and rail bottom.

Our a120 rails offer greater efficiencies through their ability to handle higher axle loads with low deformation, with high strength and good weldability and high fracture resistance.

As a professional rail products manufacturer in China, we can provide high-quality a120 rail with various sizes as listed above to meet your special requirements.

Henan ZongXiang is an professional company that provide light rail, heavy rail, crane rail and rail accessories. We have establish more than 20years, we provide professional service in a120 rail, if you have any question about a120 rail, you can contact us,if you need a120 rail,please choose us.
