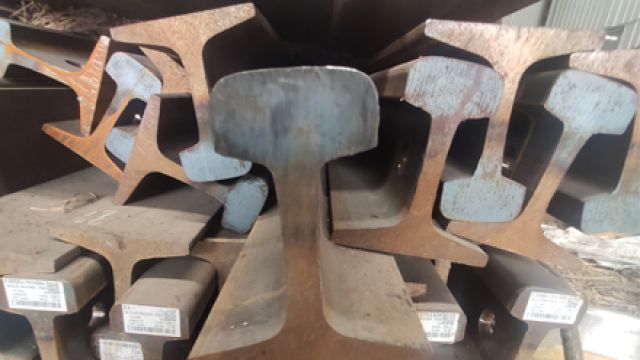

38KG Heavy Rail
38KG Heavy Rail
Type: 38kg rail
Material: 50Mn/U71Mn
Weight:  38.733KG/M
Length: 12.5-25m
Standard: GB2585-2007 Heavy rail
Product Descriptions:
Steel rail, also called rail track, steel track, is the main component of railway track. Its function is to guide the wheels of the locomotive, bear the great pressure of the wheel, and keep the stability of railway transportation. The rail must provide continuous, smooth and minimum rolling surfaces for the wheels. In electrified railway or automatic block section, rail can also be used as an orbital circuit.
Specifications:
38kg Rail Parameters
Rail Type Weight(Kg/m) Material Length(m)
38kg 38.733 50Mn/U7Mn 12.5-25
Head Width(mm) Bottom Width(mm) Rail Height(mm) Web Thickness
68 114 134 13

Other Sizes of Crane Rail
Size Head Width(mm) Bottom Width(mm) Rail Height(mm) Web Thickness(mm) Weight(Kg/m) Material Length(m)
43kg 70 114 140 14.5 44.653 50Mn/U7Mn 12.5-25
50kg 70 132 152 15.5 51.514 50Mn/U7Mn 12.5-25
60kg 73 150 176 16.5 60.64 50Mn/U7Mn 12.5-25
Drawing:



We supply and export 38KG Rail with high quality and competitive prices.38kg rail is one of heavy rails.38kg rail consists of rail head, rail waist and rail bottom. If you have any problems or want to know about 38kg rail,just contact us.If you need 38kg rail,please leave a message.

Application: Overhead special crane, Power plant, etc. Safe Load: 10-20 tons
