Product Description

Chinese standard steel rail

By the weight per meter, Chinese standard steel rail can be classified into three types, such as heavy rail, light rail and crane rail. When the weight per meter of steel rail is equal to or less than 30kg, it is called light rail. On the contrary, heavy rail is refer to the weight per meter of rail is more than 30kg.

Crane rail is usually classified into GB standard QU70, QU80, QU100, and QU120. Crane rail is made of u71mn, and with YB/T5055-93 standard.

Crane Rail YB/T5055-93 Material: U71Mn Tensile Strength:880Mpa.Min Length: 9-12m

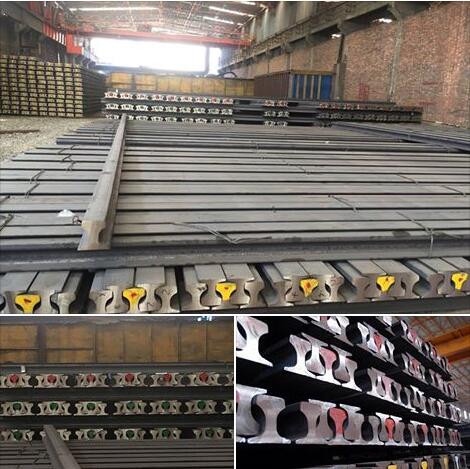

Product Image

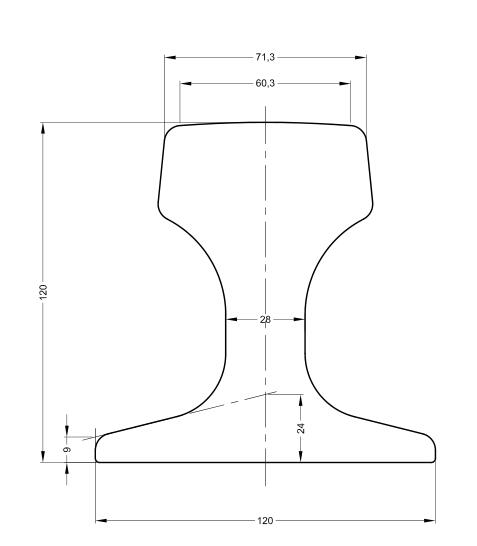

Type	H(mm)	B(mm)	C(mm)	S(mm)	Theoretical Weght(KG/M)	Cross-sectional Area(cm2)	Material	Length(m)
QU70KG	120	120	70	28	52.80	67.30	U71Mn	12
QU80KG	130	130	80	32	63.69	81.13		9-12
QU100KG	150	150	100	38	88.96	113.32
QU120KG	170	170	120	44	118.1	150.44

Company Brief Introduction

Henan Zongxiang Heavy Industry Import & Export Co., Ltd, established by experienced crew on the rail & track field, is a professional & reliable supplier that provides all kinds of rail & track accessories.

As an international trade subsidiary of Zhongxiang Steel Group Inc,. was found 1997. We have more than two decades experience on this field, covering an area of 33,000 square meters, with about 300 employees, 4 production lines, 2 R & D department, and 5 quality control staffs. With advanced technology, powerful processing capacity and excellent service,our products have been well recognized by our customers from domestic and overseas market.

Certification

Quality assurance: mill test certificate is provided and third inspection is acceptable. In order to ensure better quality, our products-the steel rails must pass several tests, including chemical composition test, tensile strength test, hardness test and the drop weight test.

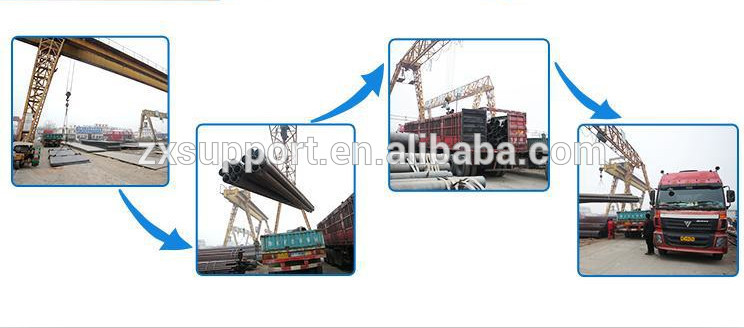

Packaging & Shipping

Packaging Details: packed in bundle with iron wire or as your requirement

Delivery Details: within 15-35 workdays after receiving your payment

FAQ

Why Choose Us!

Q: Are you trading company or manufacturer ?

A: We are manufacturer.

Q: How long is your delivery time?

A: Generally, within 15-35 working days after deposit received.

Q: Can we visit you factory?

A: Warmly welcome! Once we have your schedule, we wii arrange the professional sales team to fellow up your case.

Q: Do you provide samples ? Is it free or extra ?

A:Available upon request.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
